Compact & Automotive Connectivity Solutions – FH76 & ZE05 Hybrid Series

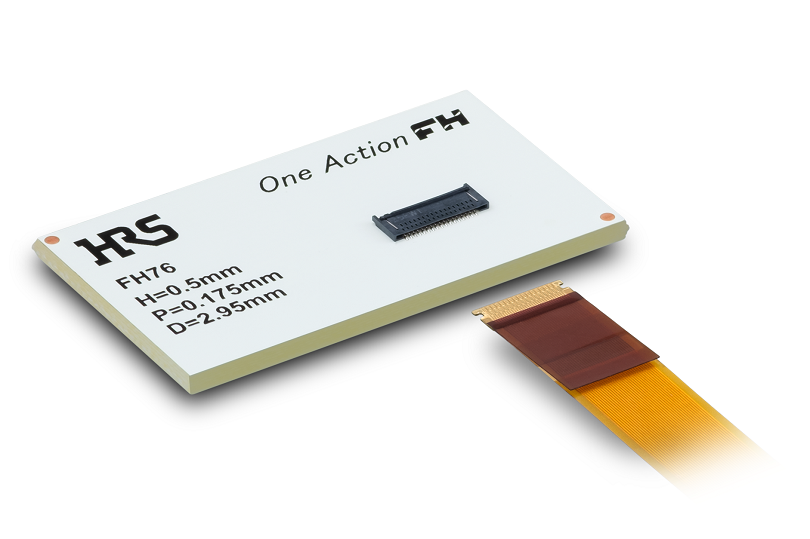

FH76 Series

0.175mm Pitch / 0.5mm Height One Action Lock, Top Contact, FPC Connector

Features:

1. Ultra Low Height, Space-saving

2. Automatic One Action Locking Design

3. Improved FPC Retention Force with Lock Structure

4. Unique Mechanism Detects Mis-mating of FPC

5. Environmental Compatibility

For more information:
https://www.hirose.com/en/product/series/FH76

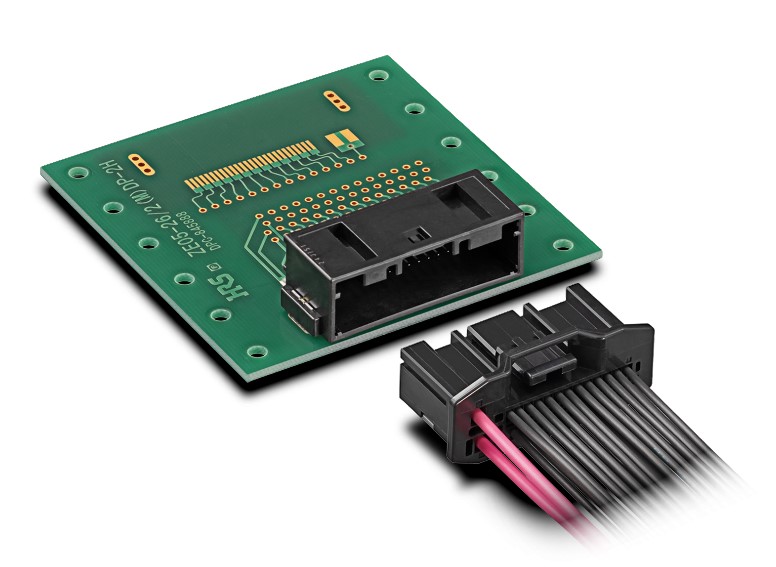

ZE05(Hybrid) Series

High Temperature and Vibration Resistance,
0.5+1.5 Size, 2mm pitch Automotive Interface Connector

Features:

1．Space-saving (0.5+1.5 Terminal Size, 2mm Pitch)
2．High Temperature Resistance: 125℃
3．High Vibration Resistance
4．Rated Current
      Signal: 2A (All Pins Power Supply) / Power: 10A
      (All Pins Power Supply)
5．Compatible Cable
      Signal: 20-22 AWG (0.3-0.5sq), 24-26 AWG (0.13-0.22sq)
      Power: 16-18 AWG (0.75-1.25sq)

For more information: https://www.hirose.com/en/product/series/ZE05(Hybrid)
