NVIDIA Quadro P5000

NVIDIA Quadro P5000

Part No. VCQP5000-PB

EAN: 3536403352134




Get unmatched power, unmatched creative freedom with NVIDIA® Quadro®—the world’s most powerful workstation graphics

The NVIDIA Quadro P5000 workstation graphics card, powered by NVIDIA Pascal™ GPU technology, features
16 GB memory capacity and enables an expansive visual workspace with quad display outputs. Work with larger models, complex visual effects and simulations, larger rendering tasks, and more life-like VR experiences in your workflow today and be well prepared for the challenges of tomorrow.

PNY Technologies delivers professional graphics cards with all necessary accessories, including appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install. PNY Technologies offers a standard 3-year warranty, dedicated Quadro Field Application engineers and direct tech support hot lines for pre- and post-support.

QUADRO P5000 – Product Specifications
Memory Size16 GB GDDR5
Memory Interface256-bit
Memory Bandwidth 288GB/s
CUDA Cores2560
System InterfacePCI Express 3.0 x16
Max Power Consumption 180W
Energy Star EnablingYes
Thermal SolutionUltra-quiet active fansink
Form Factor 112 mm H × 267 mm L (4.4” H ×10.5” L)
Dual Slot, Full Height

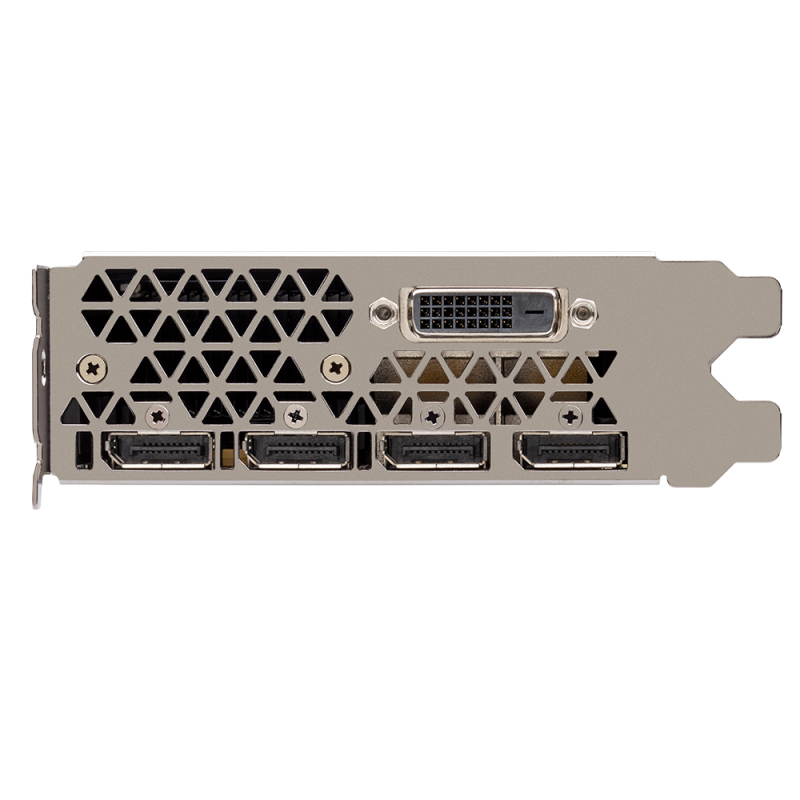

Display Connectors 1 × DVI-I DL
4 × DP1.4
Max Simultaneous Displays 4 Direct
4 DP 1.4 Multi-Stream
DisplayPort 1.4Yes
DisplayPort with AudioYes
DVI-D Single-Link ConnectorVia included adapters
VGA SupportVia included adapters
Max DP 1.2 Resolution7680 × 4320 @ 30 Hz
Maximum DVI-I DL Resolution2560 ×1600 @ 60 Hz
Maximum DVI-I SL Resolution1920 × 1200 @ 60 Hz
Maximum VGA Resolution2048 × 1536 @ 85 Hz
HDCP 2.2 SupportYes
Graphics APIsShader Model 5.1, OpenGL 4.5, DirectX 12, Vulkan 1.0
Compute APIsCUDA,  DirectCompute, OpenCL™
NVIDIA nView™ Desktop
Management Software Compatibility
Mosaic ModeYes
NVIDIA 3D Vision and 3D Vision ProYes
3D Stereo SupportYes
NVIDIA GPUDirect™ SupportYes
Quadro Sync 2 CompatibilityYes
Stereo ConnectorYes

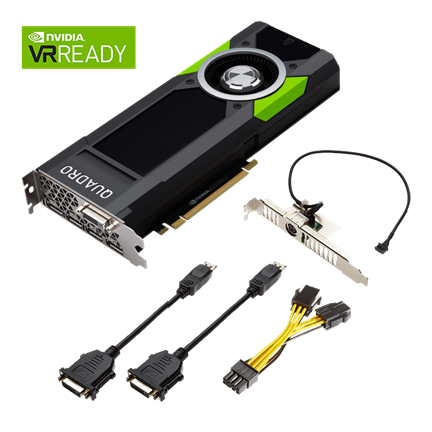

Package Content

3 × DP to DVI (SL) adapter
1 × DVI to VGA adapter
1 × Stereo Connector Bracket

1 × Driver & Quick Installation Guide

QUADRO P5000 – Minimum System Requirements
Windows 10, Windows 8.1, Windows 8, 7, Linux, or Solaris
PCIe x16 expansion slot
1GB or more of system memory, 2GB recommended
200MB of available disk space for full driver installation
Blu-ray or DVD-ROM drive
Internet connection (if preferred for driver installation)
DisplayPort, DVI, or VGA compatible display(s)
QUADRO P5000 – SKUs et EANs
