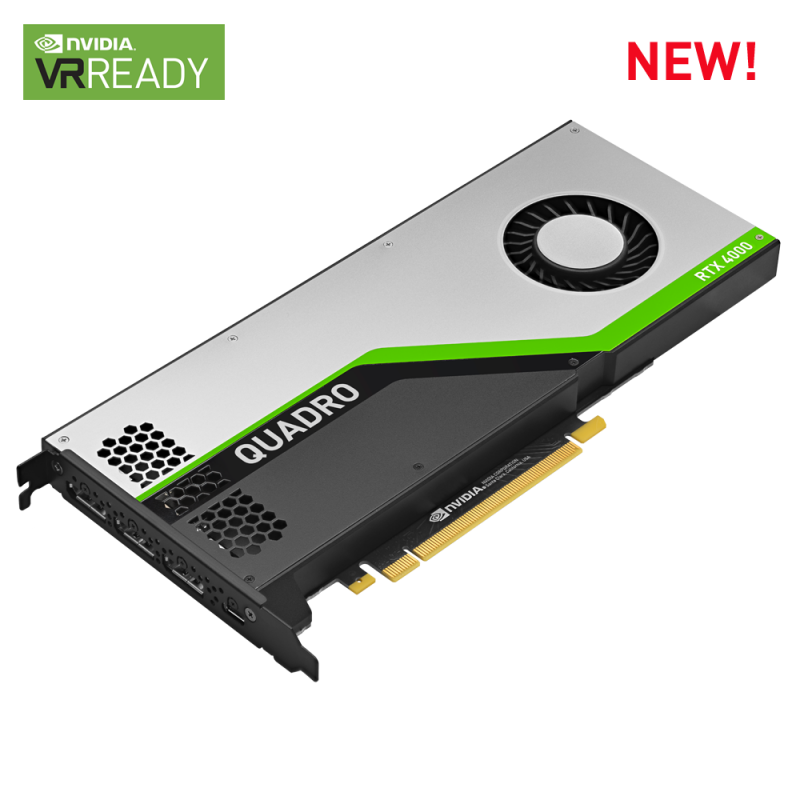

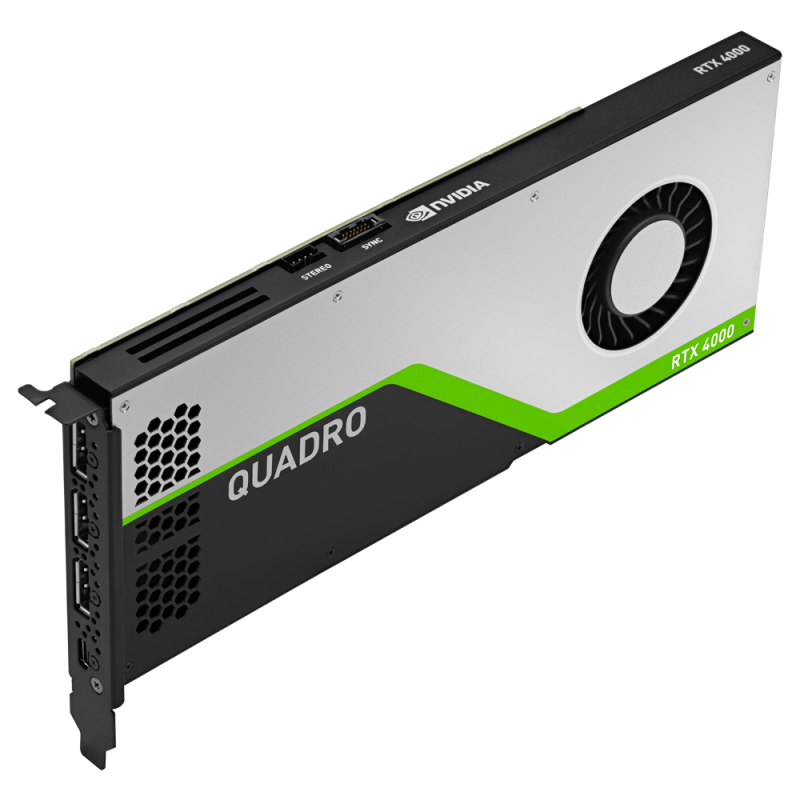

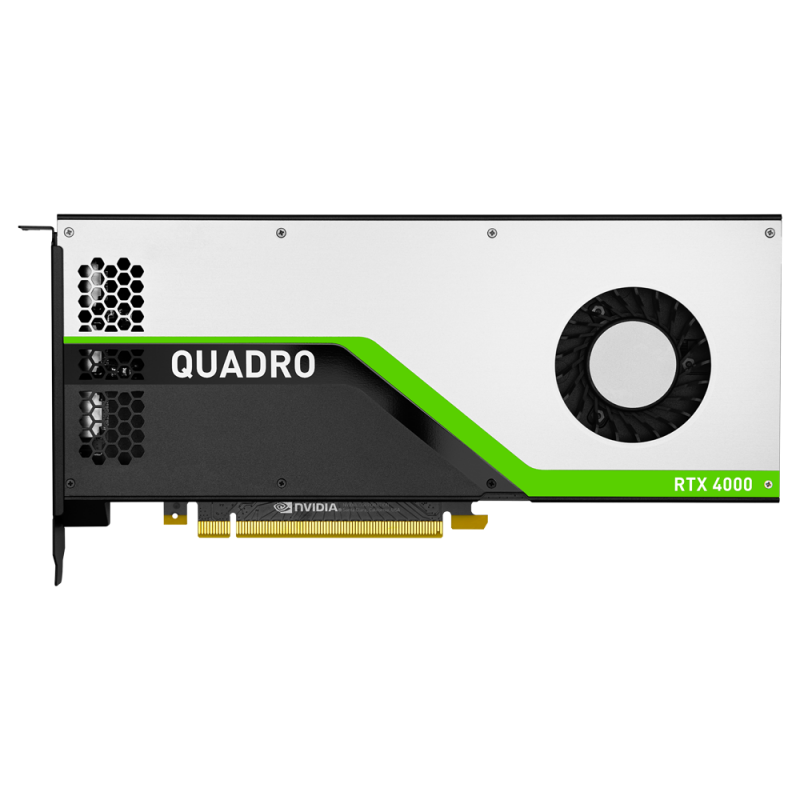

NVIDIA Quadro RTX 4000
NVIDIA Quadro RTX 4000
Part No. VCQRTX4000-PB
EAN: 3536403368029

NVIDIA® Quadro® RTX™ 4000
The World’s First Ray Tracing GPU

Quadro RTX 4000 combines the NVIDIA Turing GPU architecture with the latest memory and display technologies, to deliver the best performance and features in a single-slot PCI-e form factor. Enjoy greater fluidity with photorealistic rendering, experience faster performance with AI-enabled applications and create detailed, lifelike VR experiences.

Quadro RTX 4000 features 36 RT cores to accelerate ray tracing, 288 Tensor cores to accelerate AI and 8 GB GDDR6 memory to accommodate large datasets. It is equipped with three DisplayPort 1.4 connectors with HDR support and features the latest VirtualLink connector (that can also drive a DisplayPort panel via an included USB Type-C to DP adapter) to simplify connectivity to next-gen VR HMDs. Additionally, in conjunction with Quadro Sync II you can deploy massive digital signage solutions with higher density and at lower cost.

Incredible Application Performance

  •     Experience fast, interactive, professional application performance
  •     Latest NVIDIA Turing GPU architecture and ultra-fast graphics memory

New RT Cores for Realtime Ray Tracing

  •     36 RT Cores accelerate photorealistic ray-traced rendering
  •     NVIDIA RTX technology brings realtime rendering to professionals

Tensor Cores Accelerate AI Workflows

  •     288 Tensor Cores power AI development and training
  •     Incredible inferencing performance is ideal for “at the edge” deployment

Next Generation VR Support

  •     VirtualLink simplifies HMD cabling
  •     Advanced rendering and shading features for immersive VR

NVIDIA Quadro RTX 4000 – Product Specifications

CUDA Cores2034
NVIDIA RT Cores36
NVIDIA Tensor Cores288
GPU Memory8 GB GDDR6 with ECC
RTX-OPS43 T
Rays Cast6.0 Giga Rays/Sec
Peak FP32 Performance7.1 TFLOPS
Peak FP16 Performance14.2 TFLOPS
Peak INT8 Performance28.5 TOPS
Deep Learning TFLOPS57.0 Tensor TFLOPS
Memory Bandwidth416 GB/s
System InterfacePCI Express 3.0 x16
Maximum Power Consumption160 W
Energy Star EnablingYes
Thermal SolutionUltra-quiet active fansink
Form Factor11.18 cm H x 26.67 cm L, Single Slot

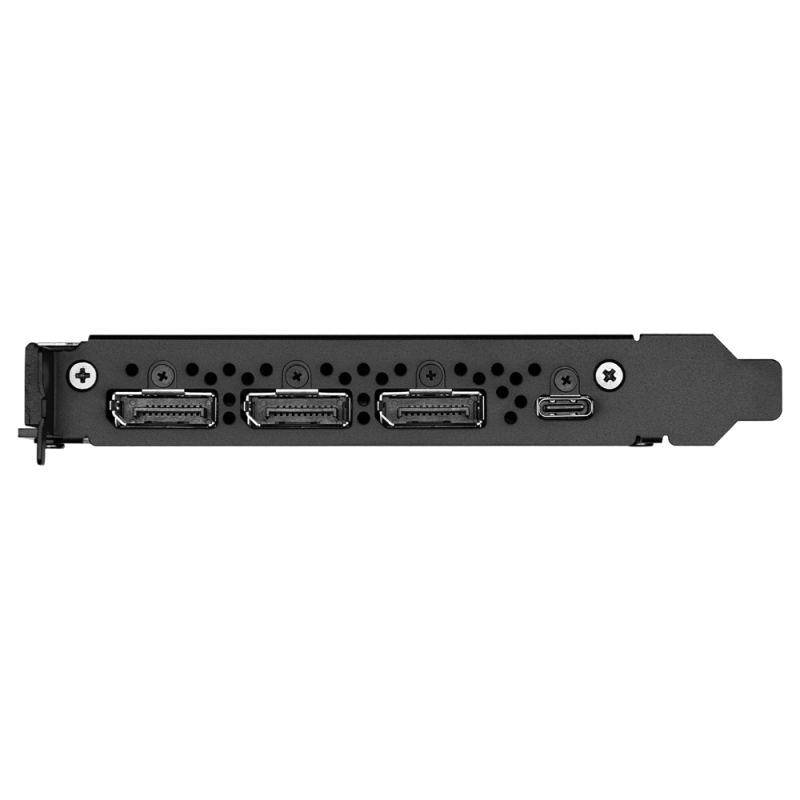

Display ConnectorsDisplayPort 1.4 (3) + VirtualLink
DVI-D Single-Link ConnectorYes, via included adapter
HDMI SupportYes, via included adapter
Number of Displays Supported4
Maximum DP 1.4 ResolutionHDR 7680 x 4320 at 60 Hz
5K Display SupportHDR 5120 x 2880 at 60 Hz
4K Display SupportHDR 4096 x 2160 or 3840 x 2160 at 120 Hz
Maximum DVI-D DL Resolution2560 x 1600 at 60 Hz via 3rd party adapter
Maximum DVI-D SL Resolution1920 x 1200 at 60 Hz via included adapter
HDCP SupportYes
Professional 3D SupportVia optional Stereo Connector Bracket
Quadro Sync II CompatibleYes (Frame Lock and Genlock)
NVIDIA GPU Direct CompatibleYes
Graph APIsShader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0
Compute APIsCUDA, DirectCompute, OpenCL
NVIEWYes
NVIDIA MOSAICYes
Warranty3 Years

NVIDIA Quadro RTX 4000 – SKUs and EANs

RetailUnitVCQRTX4000-PBEAN: 3536403368029
