3,342 ₪

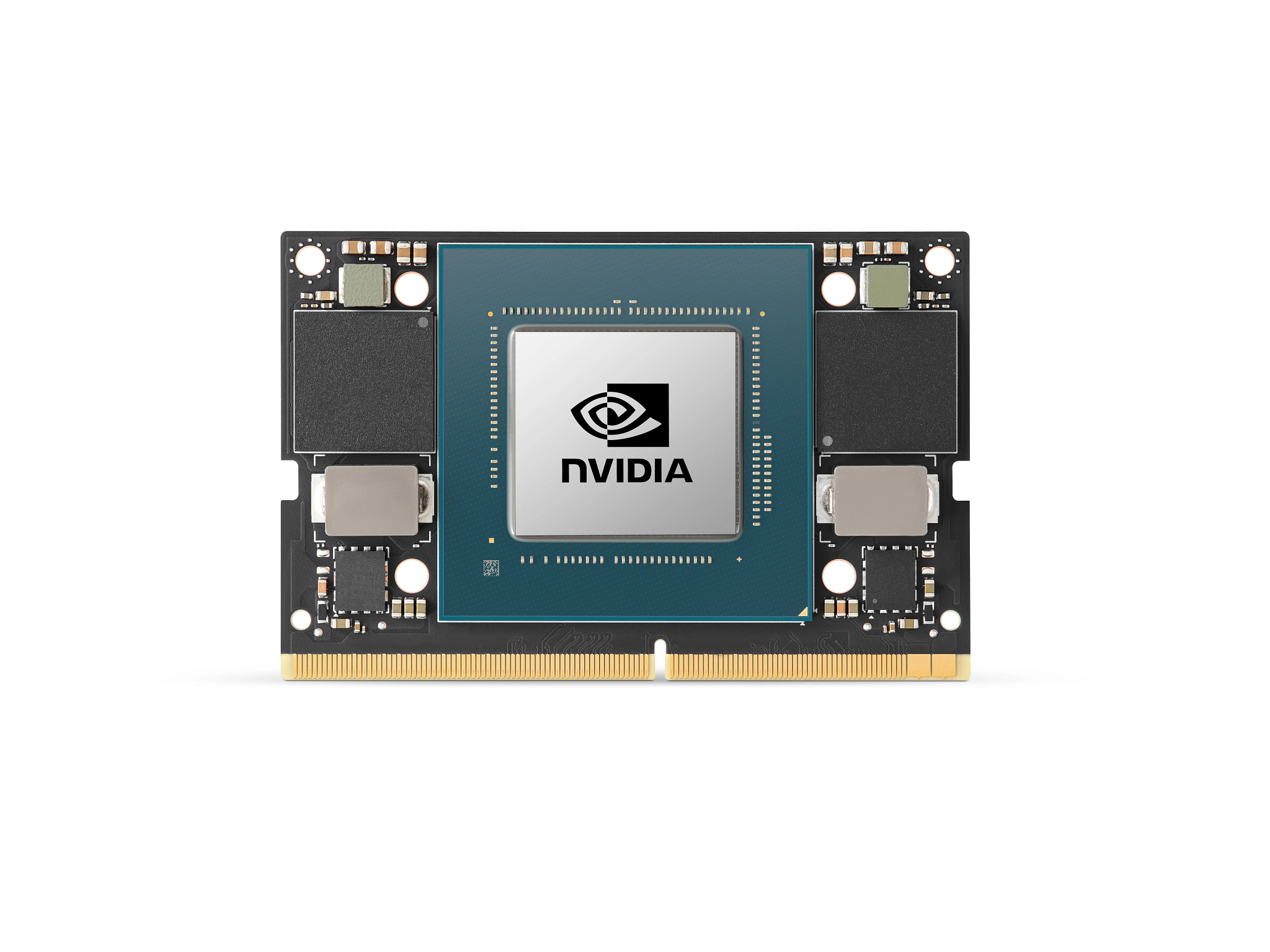

Experience the world’s most powerful AI computer for autonomous power-efficient machines in the smallest Jetson form factor.
It delivers up to 5X the performance and twice the CUDA cores of NVIDIA Jetson Xavier™ NX, plus high-speed interface support for multiple sensors.
With up to 100 TOPS for multiple concurrent AI inference pipelines, Jetson Orin NX gives you big performance in an amazingly compact package.
| Jetson Orin NX series | ||
| Jetson Orin NX 16GB | Jetson Orin NX 8GB | |
| AI Performance | 100 TOPS | 70 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | |
| GPU Max Frequency | 918MHz | 765MHz |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| CPU Max Frequency | 2 GHz | |
| DL Accelerator | 2x NVDLA v2 | 1x NVDLA v2 |
| DLA Max Frequency | 614MHz | |
| Vision Accelerator | 1x PVA v2 | |
| Memory | 16GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
| Storage | (Supports external NVMe) | |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
|
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
|
| CSI Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
|
| PCIe | 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) |
|
| USB | 3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
|
| Networking | 1x GbE | |
| Display | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 | |
| Other I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs | |
| Power | 10W – 25W | 10W – 20W |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
|
