3,925 ₪

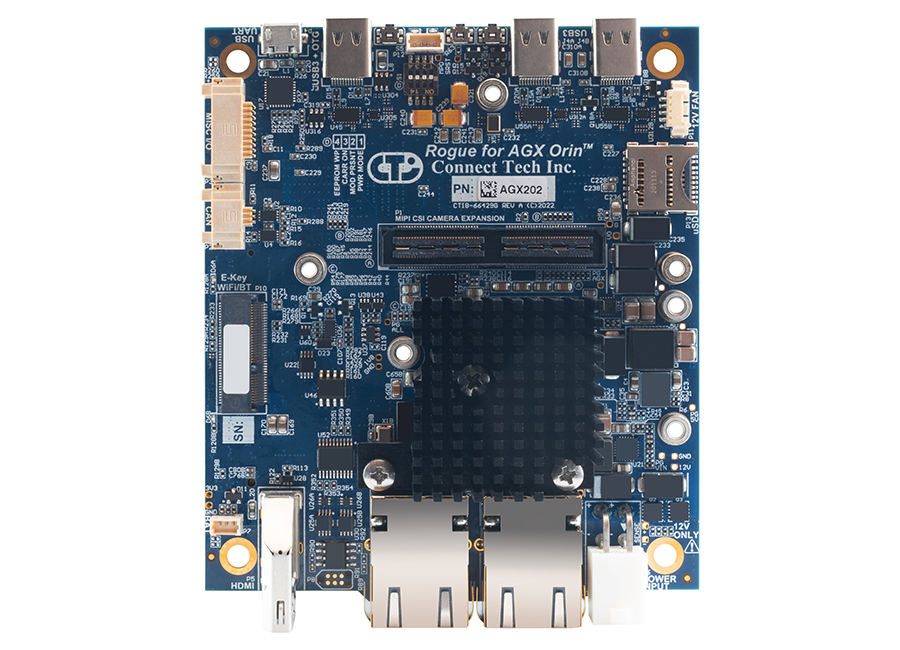

Rogue Carrier for Jetson AGX Orin™ is a full-featured carrier board specifically designed for commercially deployable platforms.
Rogue for Jetson AGX Orin™ provides access to an impressive list of latest generation interfaces on the Jetson AGX Orin™ and AGX Orin™ Industrial* while adding additional interfaces of 2x 10GbE, 3x USB 3.1, HDMI and a locking Mini-Fit Jr. power input connector.
Integrations with external storage and WiFi/Bluetooth via Intel 8265 are also available, contact sales@connecttech.com for more details.
*Jetson AGX Orin™ Industrial module is supported on Rev D or later on the AGX202
| Networking | 2X 10GBASE-T (10G Ethernet) |
|---|---|
| Display | 1x HDMI (Type-A vert RA) (Supports up to HDMI 2.0 UHD 4K [2160p] at 60Hz) |
| Camera Inputs | – 6 x2 Lane MIPI CSI-2 or – 4 x4 Lane MIPI CSI-2 All connected via high-density camera connector breakout. Same Pinout as development kit. Application specific camera add-on boards can be used in conjunction with this interface (Up to 6x MIPI I-PEX, SerDes Inputs: GMSL or FPD-Link III, HDMI Inputs) |
| USB | 1x USB 3.2 Ports (Type-C – OTG Capable), 2x USB 3.2 Ports (Type-C) |
| Storage | 1x Micro SD, 2x NVMe M.2 Key M Slots |
| UART | 2x @3.3V Levels UART0 and UART1 Micro USB Debug UART |
| I2C/SPI | 1x I2C Channel @ 3.3V IO 1x SPI Channel @ 3.3V IO |
| CAN | 2 x CAN 2.0b Port (Non-Isolated) |
| GPIO | 4 bits of 3.3V (level shifted GPIO) |
| User Expansion | 1 x M.2 Key E Slot with PCIe & USB (WiFi + BT modules) |
| Input Power | +12VDC Input Only (Positive Locking Molex Mini-Fit Jr Header) |
| Buttons | Power, Reset, Recovery (Tactile Buttons as well as fine pitch pin header connector) |
| RTC Battery | 3-pin Picoblade connector to accept CTI battery cable assembly |
| PCB/Electronics Mechanical Information | Dimensions: 92mm x 107mm |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Compatible Jetson SKUs | 900-13701-0040-000 |
