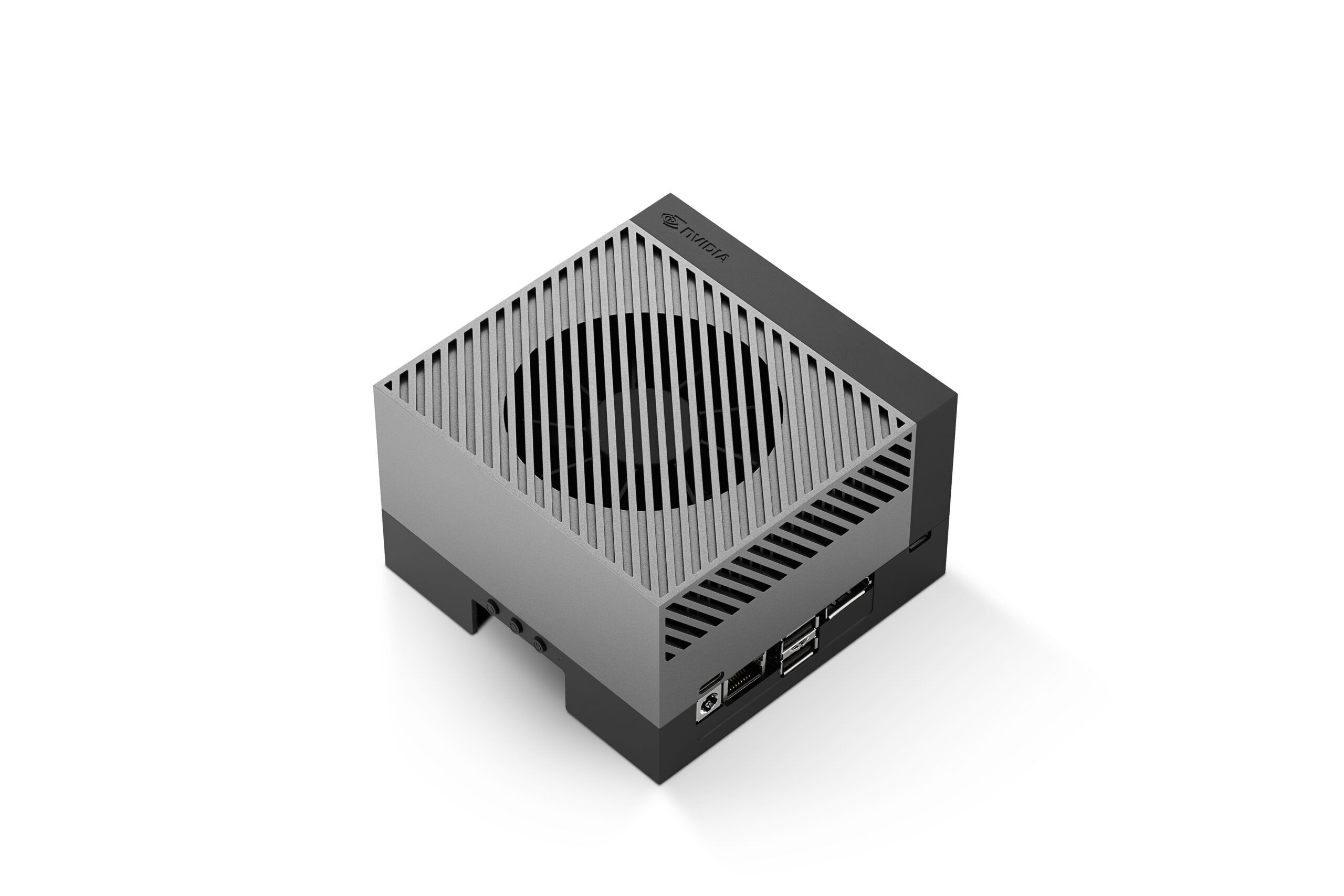

NVIDIA® Jetson AGX Orin Developer Kit

NVIDIA® Jetson AGX Orin Developer Kit

₪7,663.02 ($2,049.00)

Order the Jetson AGX Orin Developer Kit

Get started developing with the NVIDIA® Jetson AGX Orin™ Developer Kit. It includes a high-performance, power-efficient Jetson AGX Orin module and can emulate the entire family of Jetson Orin modules. With up to 275 TOPS for running the NVIDIA AI software stack, this developer kit lets you create advanced robotics and edge AI applications for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences.

Bring your next-gen products to life with the world’s most powerful AI computer for energy-efficient autonomous machines. With up to 275 TOPS and 8X the performance of the last generation for multiple concurrent AI inference pipelines, plus high-speed interface support for multiple sensors, NVIDIA Jetson Orin™ modules provide the ideal solution for a new age of robotics.

Are you an Academic Student or Educator?

You may be entitled to a special discount coupon for this product!
CLICK HERE for further details

SKU: 945-13730-0055-000 Category:
JETSON AGX ORIN MODULE
GPU NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and
64 Tensor cores
CPU 12-core Arm Cortex-A78AE v8.2 64-bit CPU
3MB L2 + 6MB L3
DL Accelerator 2x NVDLA v2.0
Vision Accelerator PVA v2.0
Memory 64GB 256-bit LPDDR5
204.8 GB/s
Storage 64GB eMMC 5.1
Video Encode 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)
Video Decode 1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265)

Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.

REFERENCE CARRIER BOARD
Camera 16 lane MIPI CSI-2 connector
PCIe x16 PCIe slot supporting x8 PCIe Gen4
RJ45 Up to 10 GbE
M.2 Key M x4 PCIe Gen 4
M.2 Key E x1 PCIe Gen 4, USB 2.0, UART, I2S
USB Type-C 2x USB 3.2 Gen2 with USB-PD support
USB Type-A 2x USB 3.2 Gen2, 2x USB 3.2 Gen1
USB Micro-B USB 2.0
DisplayPort DisplayPort 1.4a (+MST)
microSD slot UHS-1 cards up to SDR104 mode
Other 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC battery backup connector
DC power jack
Power, Force Recovery, and Reset buttons
Dimensions 110mm x 110mm x 71.65mm
(Height includes feet, carrier board, module, and thermal solution)
