13,786 ₪
מוגבל ליחידה אחת ללקוח

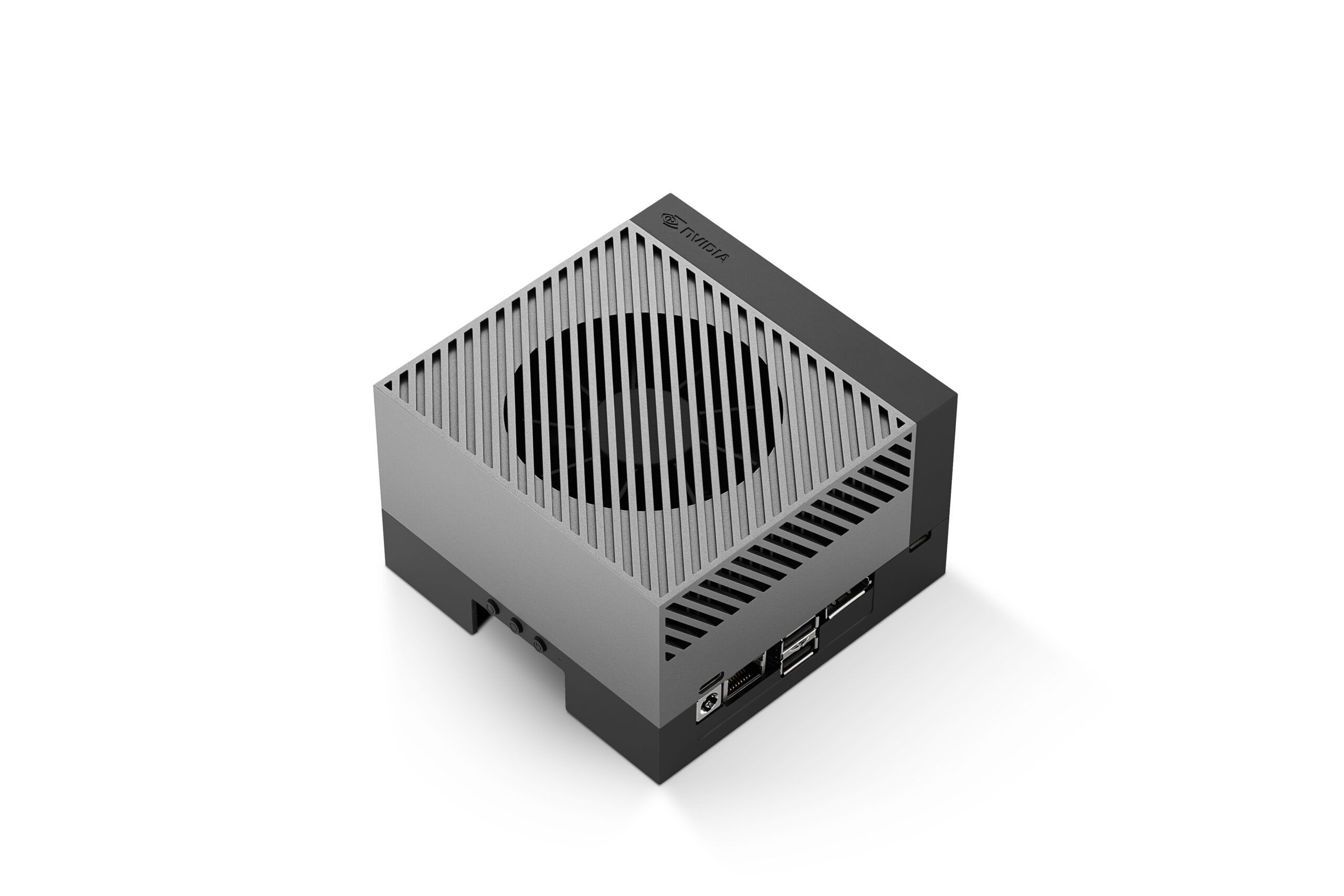

Get started developing with the NVIDIA® Jetson AGX Orin™ Developer Kit. It includes a high-performance, power-efficient Jetson AGX Orin module and can emulate the entire family of Jetson Orin modules. With up to 275 TOPS for running the NVIDIA AI software stack, this developer kit lets you create advanced robotics and edge AI applications for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences.
Bring your next-gen products to life with the world’s most powerful AI computer for energy-efficient autonomous machines. With up to 275 TOPS and 8X the performance of the last generation for multiple concurrent AI inference pipelines, plus high-speed interface support for multiple sensors, NVIDIA Jetson Orin™ modules provide the ideal solution for a new age of robotics.
You may be entitled to a special discount coupon for this product!
CLICK HERE for further details
| JETSON AGX ORIN MODULE | |
|---|---|
| GPU | NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 Tensor cores |
| CPU | 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| DL Accelerator | 2x NVDLA v2.0 |
| Vision Accelerator | PVA v2.0 |
| Memory | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 |
| Video Encode | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) |
| Video Decode | 1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265) |
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
| REFERENCE CARRIER BOARD | |
|---|---|
| Camera | 16 lane MIPI CSI-2 connector |
| PCIe | x16 PCIe slot supporting x8 PCIe Gen4 |
| RJ45 | Up to 10 GbE |
| M.2 Key M | x4 PCIe Gen 4 |
| M.2 Key E | x1 PCIe Gen 4, USB 2.0, UART, I2S |
| USB Type-C | 2x USB 3.2 Gen2 with USB-PD support |
| USB Type-A | 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 |
| USB Micro-B | USB 2.0 |
| DisplayPort | DisplayPort 1.4a (+MST) |
| microSD slot | UHS-1 cards up to SDR104 mode |
| Other | 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, and Reset buttons |
| Dimensions | 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
