| GPU | NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
|---|---|
| CPU | 8-core NVIDIA Carmel Armv8.2 64-bit CPU |
| DL Accelerator | 2x NVDLA |
| Vision Accelerator | 2x PVA |
| Memory | 64GB 256-bit LPDDR4x |
| Storage | 32GB eMMC 5.1 |
| Camera | Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2 | 8 lanes SLVS-EC D-PHY 1.2 (up to 40 Gbps) C-PHY 1.1 (up to 62 Gbps) |
| Video Encode | 4x 4K60 (H.265) 8x 4K30 (H.265) 16x 1080p60 (H.265) 32x 1080p30 (H.265) 30x1080p30 (H.264) |
| Video Decode | 2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 26x 1080p60 (H.265) 52x 1080p30 (H.265) 30x 1080p30 (H.264) |
| UPHY | 8x PCIe Gen4 | 8x SLVS-EC 3x USB 3.1 Single Lane UFS |
| Processor Thermal Design Power (W) | 10|15|30 |
| Ethernet | 10/100/1000 BASE-T Ethernet |
| Display | Three multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 a/b |
| I/O | USB 2.0 UART, SPI, CAN, I2C, I2S, DMIC & DSPK, GPIOs |
| Mechanical | 100mm x 87mm 699-pin connector Integrated Thermal Transfer Plate |
| Shock | Non-operational: 340G, 2 ms, half sine, 6 shocks/axis, 3 axes |
| Vibration | Non-operational: 10-500 Hz, 5G RMS, 8 hours/axis |
| Temperature Range | Operational: -25°C to 80°C at TTP |
| Humidity | Non-operational: 95% RH, -10°C to 65°C, 10cycl/240 hours |
| Operating Lifetime | 5 Years |

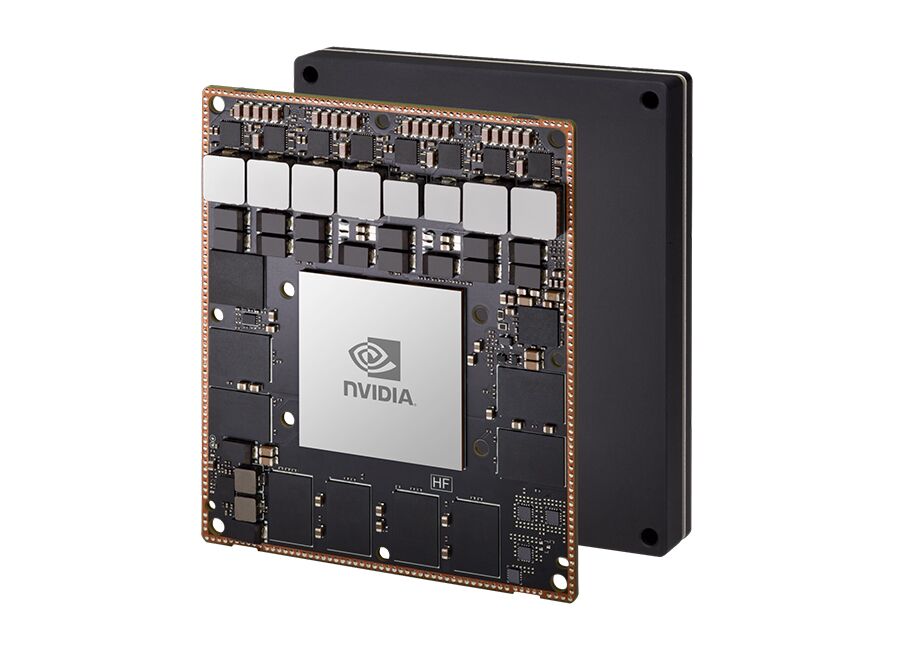

Jetson AGX Xavier Module 64GB
Jetson AGX Xavier Module 64GB
₪4,630.82 ($1,229.00)
he Jetson AGX Xavier Module is a computational accelerator designed for use in AI applications involving image recognition, object detection, and speech recognition. The Jetson AGX Xavier Module provides 20× the performance and 10× the energy efficiency compared to its predecessor, the Jetson TX2, and consumes under 30 W of power.
The Jetson AGX Xavier Module contains a 512-core NVIDIA Volta GPU with Tensor Cores, 2× NVDLA engines, an eight-core Arm V8.2 64-bit Cameral CPU, 16 GB of 256-bit LPDDR4x, 32-GB eMMC 5.1 flash storage, and seven-way VLIW vision-accelerator processor.
7 in stock
